Product Detail

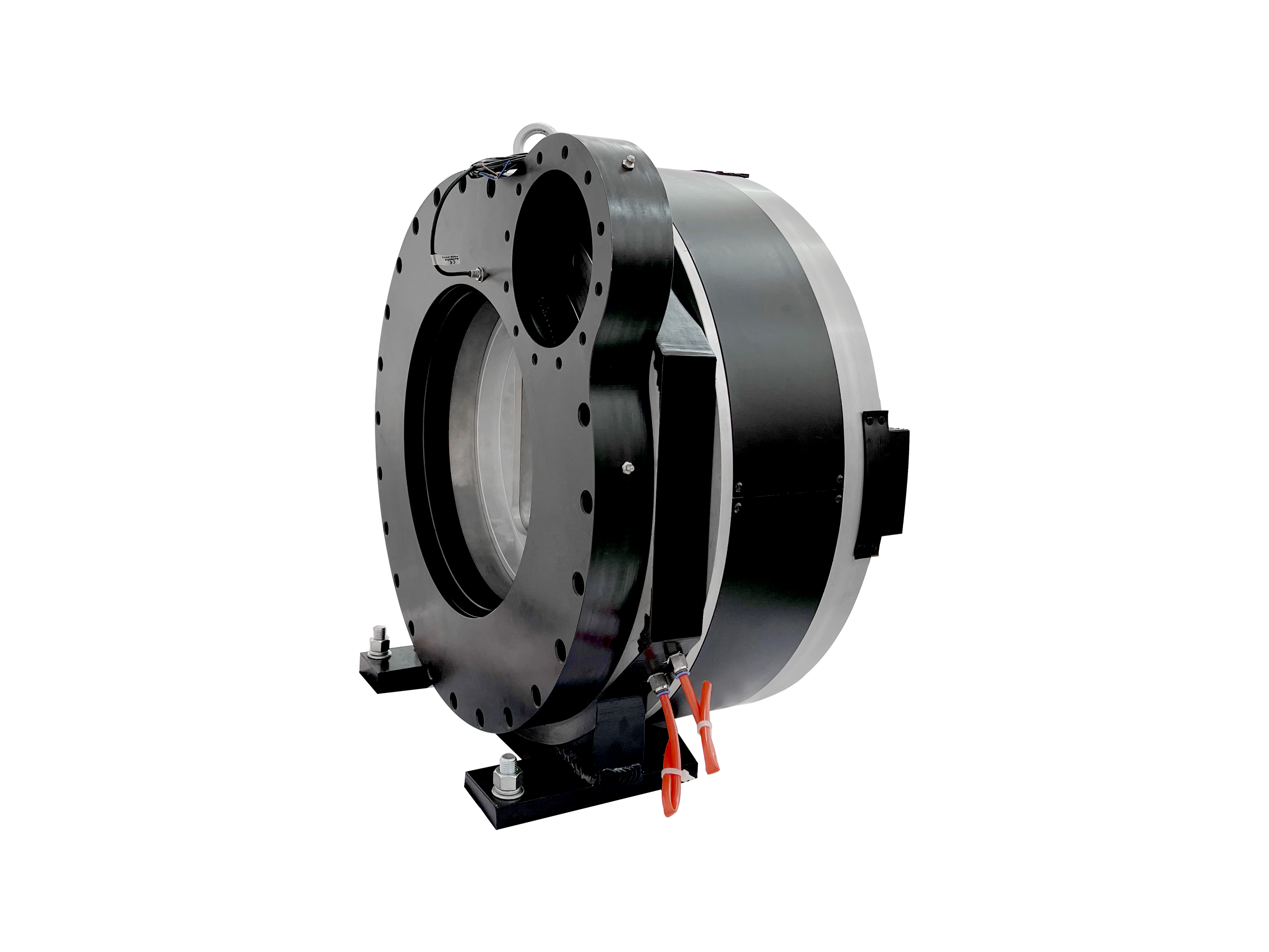

When laser pipe cutting machine is cutting pipe fittings, it is necessary to clamp and fix the pipe fittings with chuck. The full stroke chuck generally has two sets of jaws that can be opened and closed separately. However, when used to clamp thin tubes or fragile tubes, the jaw stroke is not easy to control. Loose clamping will cause the tubes to fall off, and the processed tubes will be flattened or crushed during clamping, resulting in the scrapping of the processed tubes. To solve this problem, DF series full stroke square hole chuck G620DF-245 chuck is introduced.

advantage

1. High transmission efficiency and synchronization accuracy

2. When the external dimensions of the chuck are the same, the applicable

size range of the processed pipe is larger, which can be effectively used to clamp thin pipes or fragile pipe fittings to prevent flattening, break through the limitation of round holes, and the clamping range is wider and more in line with the market demand

3. The installation position of the reducer can be adjusted arbitrarily 4. Reduce the difficulty of processing and manufacturing, which is condu-

cive to mass production; Better dust-proof effect and stronger pollution resistance

5. The product is widely used in pipe processing machine system such as

special laser pipe cutting machine.

性能参数

尺寸参数
